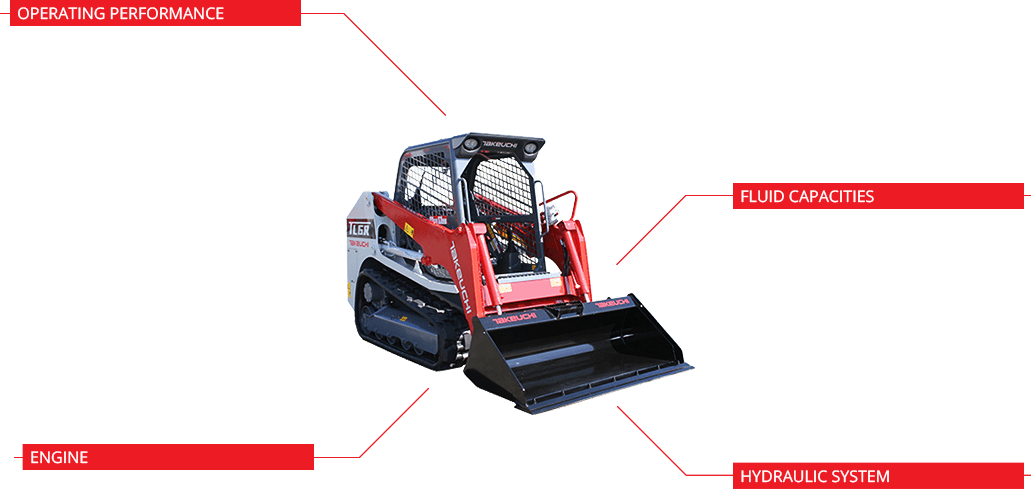

Product Specifications IMG
ENQUIRE NOW

Operating Weight - Canopy               3,395 kg

Operating Weight - Cab                      3,530 kg

Tipping Load                                        2,390 kg

Rated Operating Capacity                  835 kg

Bucket Breakout Force                       26.4 kN

Lift Arm breakout Force                     21.6 kN

Traction Force                                      38.5 kN

Ground Pressure - Canopy                33.5 kPa

Ground Pressure - Cab                       34.8 kPa

Max Travel Speed

           Low Range                                 7.0 km/h

           High Range                                10.0 km/h

*Operating Capacity of track loaders is rated according to

ISO14397-1 at no more than 35% of the tipping load.

Engine Lubrication                              7.6 L

Cooling System                                    18.0 L

Fuel Tank Capacity                              75.7 L

Hydraulic Reservoir Capacity            30 L

Hydraulic System Capactiy                51 L

Make / Model                                         Kubota /

                                                                  V2403-CR-TE4B

Displacement                                         2,434 ml

Rated Output @ 2,700 rpm                  47.9 kW

Maximum Torque @ 1,600 rpm          195.6 Nm

Auxiliary Flow - Primary Circuit           67 L/min

Hydraulic System Pressure                  20.6 MPa

ENQUIRE NOW

ENGINE

UNDERCARRIAGE AND FRAME

• EU Stege III B / EPA Tier 4 Emission

  Compliant

• Turbocharged

• DOC+DPF Exhaust After Treatment

• Active Power Control Power

  Management System

• Automatic Fuel Bleed System

• High Capacity Side-by-Side Radiator

  and Hydraulic Oil Coler Mounted on

  Swing Out Frame

• Double Element, Air Cleaner

• Permanently Sealed Track Rollers with

   Metal Face Seals

• Fully Welded Frame with Integrated

   Cross Members

• Front and Rear Tie-Down and Lift

   Points

• Two-Sped Travel w/ Auto Shift Down

• 320 mm Quiet Track Design

ELECTRICAL

• 5.7” Color Multi-Informational Display

• Rear Camera (optional)

• Sealed Rocker Switches

• 12 Volt System with 60 amp Alternator

OPERATORS STATION

• Tilt-up Operator’s Station

• Deluxe Adjustable Suspension Seat

• Re3ar Pivoting Seat bar with Integrated

   Arm Rest

• ROPS /FOPS Structure

• Retractable 2” Seat Belt
